Specification

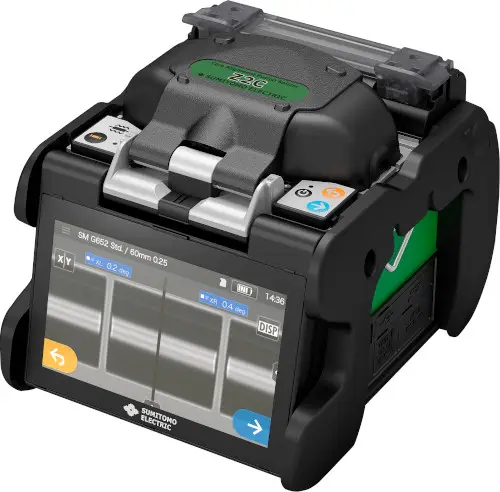

Sumitomo Z2C Full Specification
| Item | Splicer Machine |
|---|---|
| Model | Sumitomo Z2C |
| Splicing Time | 6-second |
| Alignment Mode | Core |
| Heating Time | 20-second |
| Tension Test | 2N |
| Return Loss | Greater than 60dB |
| Result Storage | 200/10000 Splice data |
| Display | 5 inch LCD monitor with touch screen operation |
| Battery | Long life battery for 310 splice & heat cycle |
| Electrodes Life Time | 6000 arc discharge |
| Operating Condition | Temperature : -10 ~ +50°C, |
| Weight | 2.1 Kg weight including battery |
Description
Overview
Wide and high-resolution touchscreen panel, compact and lightweight, 6-second ultra-fast splicing, 20-second ultra-fast heating, video tutorial to help to splicer, IPx2 / IP5x water and dust protection, remote support via internet, upgrade software via the internet, 2.1 Kg weight including battery.
